Stranding & Cabling for Multi-core Shielded Cable
A capability scenario for laying up multi-core shielded cable using tube and frame stranding machines, with low-smoke halogen-free sheathing for a clean, stable cable structure.
Challenge
- Lay up multiple cores with controlled, repeatable lay length
- Maintain a round, stable structure for downstream shielding and sheathing
- Integrate shielding and wrapping without damaging the cores
- Keep the construction compatible with low-smoke halogen-free jacketing
Materials and machinery, matched
Tube and frame stranding machines lay up the cores at controlled tension and lay length, producing a round, stable structure. Taping equipment adds shielding and separation layers, and an LSZH sheathing compound completes the cable — all matched as one production flow.
Materials used
HZDFR4100 thermoplastic LSZH sheathing, with shielding and wrapping auxiliary materials for the cable structure.
Machinery used

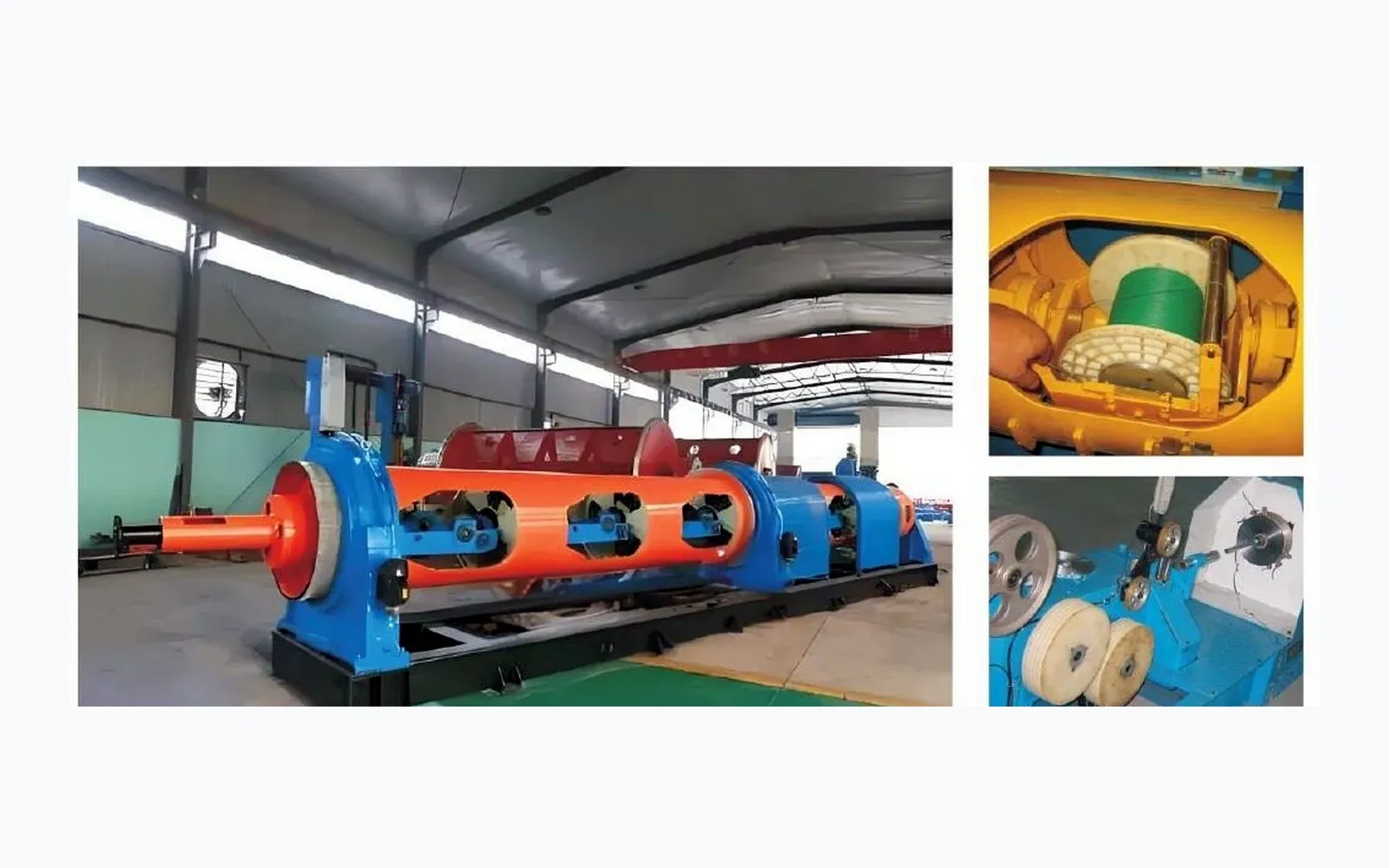

Tube stranding machine

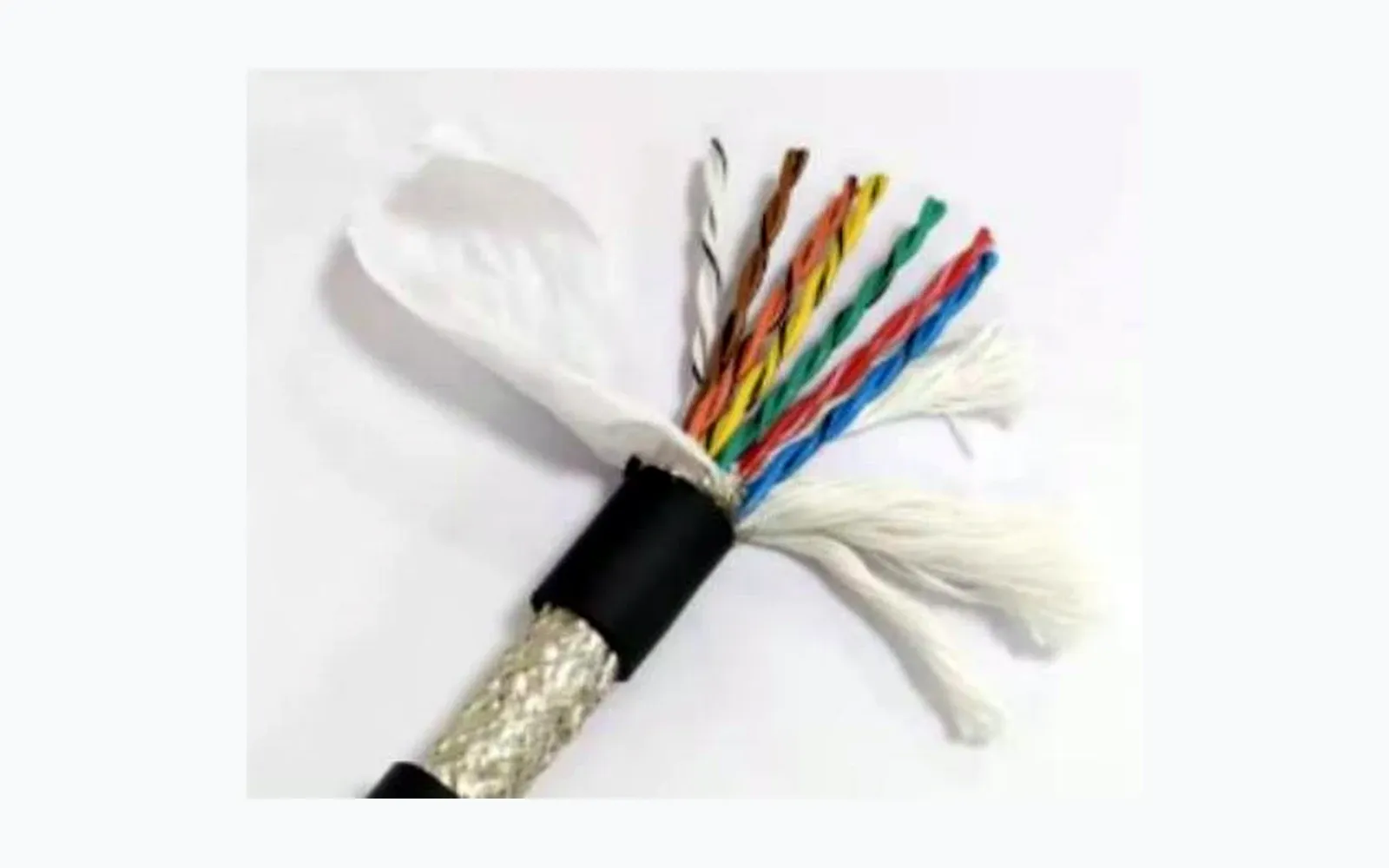

Shielded multi-core cabling

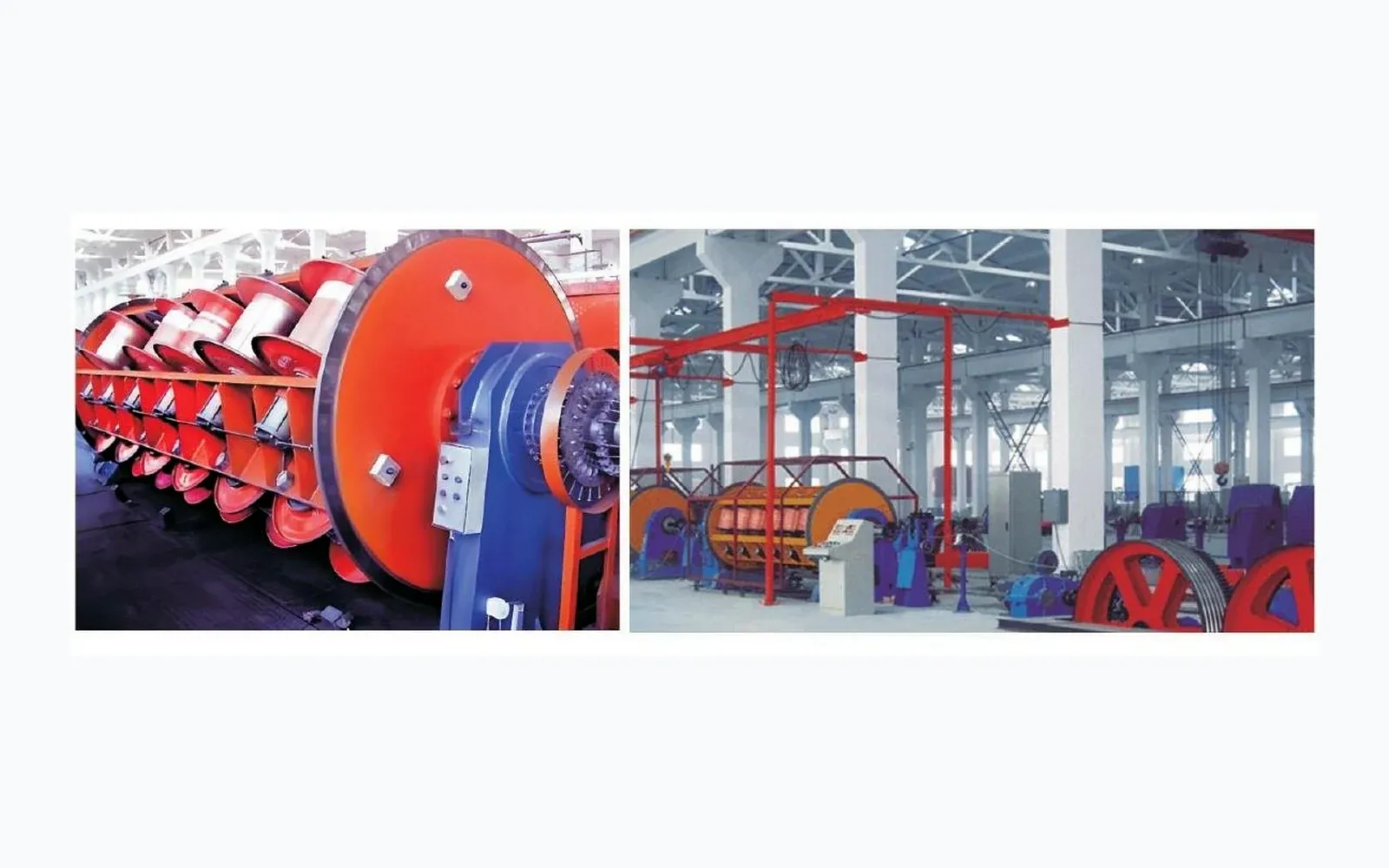

Frame / cage stranding machine
Core lay-up
Automatic PLC taping machine
Shielding and wrapping
What this delivers
Production gallery
Have a similar cable to produce?
Tell us your application and we will recommend matched materials and machinery, with samples and a quotation.
